HZS90 Ready Mix Concrete Plant to Russia

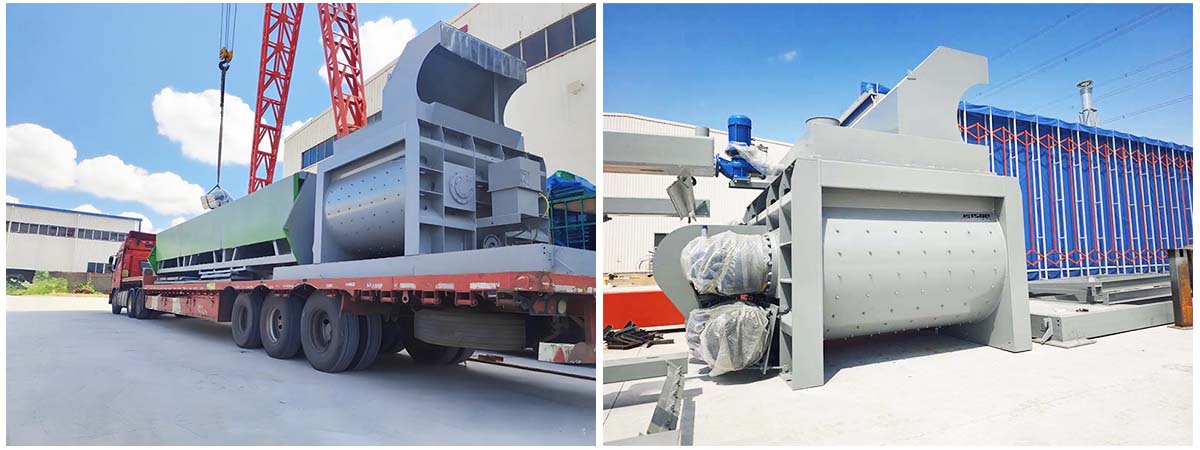

Zhucheng HZS90 ready mix concrete plant was shipped to Russia on Aug 24, 2025.
The HZS90 ready mix concrete plant, also named as HZS90 concrete batching plant, which is a high-efficiency, fully automatic stationary concrete production equipment designed for large-scale construction projects and commercial concrete production. With its robust configuration and intelligent design, it ensures reliable performance and exceptional productivity.
Main Configurations of HZS90 Ready Mix Concrete Plant:
1. Mixing System:
Equipped with a JS1500 twin-shaft forced concrete mixer, offering a nominal capacity of 1.5 m³ per batch. It ensures thorough and homogeneous mixing of concrete with high efficiency and low energy consumption.
2. Batching System:
Includes a PLD2400 batching machine with 3‒4 aggregate bins. Each bin is independently weighed with high precision. The system supports various aggregate sizes (max. 80mm) and offers weighing accuracy of ±2% for aggregates and ±1% for cement, water, and additives.
3. Control System:
Fully automated computer-controlled operation with touch-screen interface. Supports recipe storage, production data tracking, and remote monitoring. User-friendly and customizable for different project requirements.
4. Storage and Conveying:
· Aggregate storage: Available in line or star-shaped arrangement with a storage capacity of 4×20 tons.
· Belt conveyor: Inclined belt conveyor with high durability and smooth operation for efficient material transfer.
· Cement silo: Commonly paired with 100‒200-ton cement silos, equipped with dust filters and level indicators.
5. Powder and Water Metering:
Precision metering for cement, fly ash, and water. Includes screw conveyors for powder materials and a water meter with a centrifugal pump.
Advantages of HZS90 Ready Mix Concrete Plant:
· High Output: Capable of producing up to 90 m³ of concrete per hour.
· Accuracy: Advanced weighing sensors and control algorithms ensure precise batching.
· Durability: Built with high-quality steel and components for long-term use under tough conditions.
· Easy Maintenance: Modular design allows quick access to key components for service and cleaning.
· Adaptability: Suitable for diverse environments including cold climates (with heating options) and remote sites.
· Energy Efficiency: Optimized power consumption reduces operational costs.
Applications HZS90 Ready Mix Concrete Plant:
· Large infrastructure projects (bridges, highways, dams)
· Precast concrete plants
· Commercial ready-mix concrete production
· Industrial and residential construction sites
The HZS90 concrete batching plant combines performance, reliability, and eco-friendliness, making it a top choice for global contractors seeking quality and efficiency in concrete production.
